Switch between the pre-defined NxN or special layouts.
選擇預設的矩陣排列方式。
Previous/next page.
上一頁/下一頁
Stop all players.
停止矩陣中所有監看頻道的播放。
Make all players show live.
令所有的播放器都播放即時影像。
Sync. Play
同步播放Synchronize all players. When the button is sinked, playback control of all players are synchronized.
此按鈕下陷時，所有播放器之回放控制將將同步。
See Also 請參閱
Logout
登出Log out. The local console will be closed but the system is not terminated. You will need to enter account/password to operate the system.
登出，使用者登出後系統仍然運作，但無法操作。登出後必須重新輸入帳號/密碼才能使用。
Calculator
計算機Opens various configuration or tool dialogs.
開啟各種組態及工具對話視窗。
See Also 請參閱
Stg. Map
錄影資料表See Also 請參閱
Cfg. System, Cfg. Console
系統設定、介面設定See Also 請參閱
Cfg. Storage
空間設定See Also 請參閱
New Obj.
新增物件Add a new channel, user, group, map..., etc.
新增一個監看頻道、使用者、群組、地圖等物件。
See Also 請參閱
From left to right respectively:
Toolbar type selector: Set the default toolbar for all players. This overrides all individual players' toolbar settings.
OSD type selector: Select OSD information level for all players.
Main layout selector: Select default console layout type.
由左至右依序為：
- 工具列選擇：設定預設的播放放器工具列，此設定將覆蓋所有播放器現有之設定。
- OSD螢幕選擇：可選擇所有播放器螢幕顯示資訊類型。
- 版面選擇：可選擇控制端介面版面類型。
See Also 請參閱

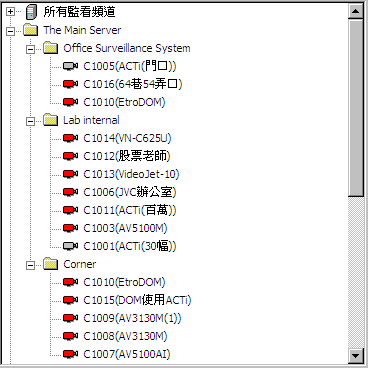

User can manage objects by creating folders and drag&drop to change the hierarchy and the order. Folders can also be renamed. Remind that the tree is global and local changes effect all remote GVNVR connected.
使用者可以在樹狀圖中建立資料夾，並使用滑鼠拖曳來改變其排列，資料夾亦可重新命名。請注意，樹狀圖由所有使用者共用，本機所做的任何變更將影響到其他已連線之GV錄影系統。
The node "All channels" are pre-defined and cannot be modified. Dragging a channel in "All channels" to a user-created folder creates its representatives which can be operated like the original channel item. But deleting a representative doesn't remove the channel from the system.
所有監看頻道為預設的項目，使用者無法變更。將其中的監看頻道以滑鼠拖曳至使用者自訂資料夾中，可以建立其複本，複本可進行監看頻道的各種操作，但移除複本不會刪除監看頻道。
See Also 請參閱

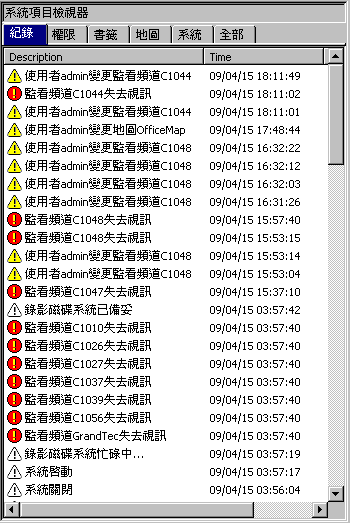

A system briefcase viewer let the users browse system objects like userlogs, channels, maps, users,.. etc. There are three components in system briefcase viewer; the filter, the header, and the list. The filter controls what types of items to be displayed. The header can be clicked to sort the items by different columns and different order. Right-click on different types of objects invokes their corresponding context menus. Items may also be dragged into players. Drag&drop behavior depends on the destined player state and the item type.
系統項目檢視器讓使用者可以瀏覽警報紀錄、監看頻道、地圖、使用者...等系統物件，檢視器包含三個部分；過濾器、標題、清單。過濾器可控制欲顯示的項目，滑鼠單擊標題可改變項目排序的欄位及順序。在清單項目上使用滑鼠右鍵可打開項目類別對應之選單。項目亦可直接拖曳至播放器中，拖曳之效果取決於項目類別及播放器之狀態。
See Also 請參閱

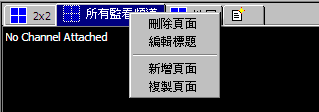

User can create and rename tabs in pattern tab control. Each pattern tab has its own layout and state.
使用者可以新增/移除/命名頁面，不同頁面有不同的矩陣排列及播放器狀態。
See Also 請參閱
There are three components in the payer; status bar, display, and toolbar. Status bar shows the title of the channel attached and its states. The three indicators on the top-right shows if the channel is recording(red), accessing recorded data(yellow), live video(green), or alarm. The toolbar is used to control the player.
播放器包含三個部分；狀態列、顯示區域、工具列。狀態列顯示已連結之監看頻道及其狀態，右上角三個指示燈分別表示警報、錄影(紅色)、回放資料讀取(黃色)、即時影像(綠色)。工具列則用於控制播放器。
See Also 請參閱
Player (Multi-Function-Display) Capabilities 多功能播放器功能差異

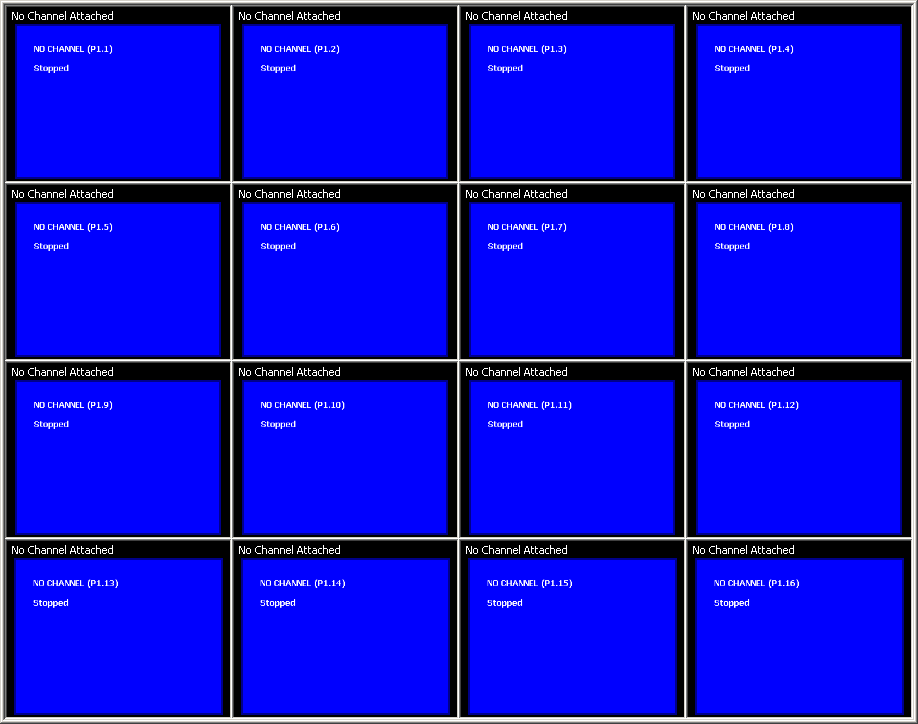

Each player slot in the console has an number as their identifier. Those are P1.1, P1.2.. P1.16, etc, as illstrated below. Their function is slightly different, as illustrated in the table following the picture.
每個播放器都有一個號碼作為他們的識別，如下圖所示，從P1.1, P1.2至P1.16，他們所具有的功能不盡相同，從圖片下方的表格可以說明。
Player identifier
播放器識別碼Can play live & PB?
播放即時及回放影像Can view maps?
觀看地圖Can view Ext. Map?
觀看外部地圖P1.1 Yes Yes Yes P1.2 Yes Yes No P1.3 Yes Yes No P1.4 Yes Yes No P1.5 ... P1.25 Yes No No

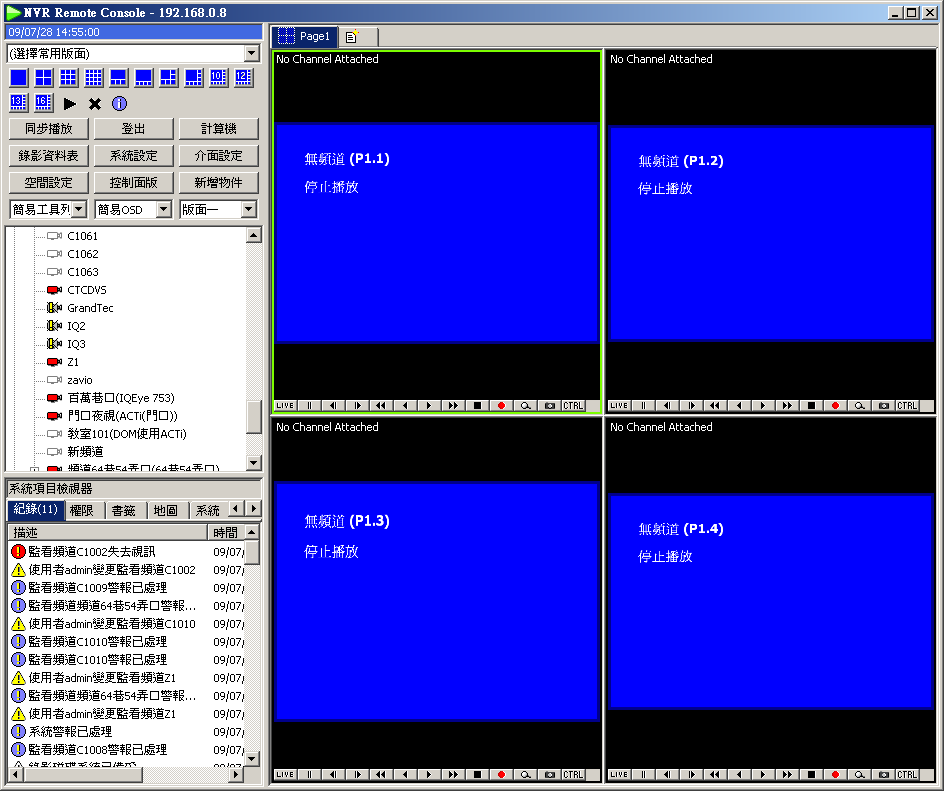

Hover mouse on these areas and the cursor will be changed to a two-way arrow. Users can hold left button and drag to adjust the size of different console components.
滑鼠游標移至這些區域時，游標會變成雙向的箭頭，按住左鍵並拖曳可改變控制面板中不同元件的比例。
