Managing layout pages 管理頁面

Overview 概述

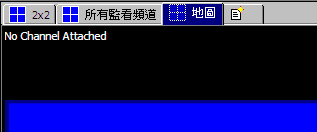

A page is a set of players with its own layout settings and player states. Each page is configured seperatedly and doesn't affect other pages. Users can create multiple pages and configure them for management purposes. For example, you can create a page named it "all channels".  Switch its layout to 4x4 and attach 16 channels in it. And then create another page named "map". Switch it to 1x1 and open a map. Then you can switch between the two pages easily without open multiple windows or applications.



頁面是一組獨立的播放器排列方式及播放器狀態,每一個頁面可以獨立設定並且互不影響。使用者可以建立多個頁面以符合管理需求。例如,你可以建立一個名為「所有頻道」的頁面,將版面切換至4x4,連結16個頻道進去,再建立一個名為「地圖」的頁面,切換至1x1並開啟地圖。如此你就能在兩個頁面間快速切換,無需開啟多個視窗或應用程式。

Add a new page 新增頁面



Click on the right most tab button to add a new page.



點擊最右邊的按鈕以新增頁面。

Editing pages 編輯頁面

Regrab English image

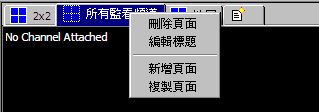

User can create, remove, and rename tabs in pattern tab control. Each pattern tab has its own layout and state. You can also drag the tab to change the order of the pages.

使用者可以新增/移除/命名頁面,不同頁面有不同的矩陣排列及播放器狀態。 使用滑鼠拖曳頁面可改變其排列順序。
