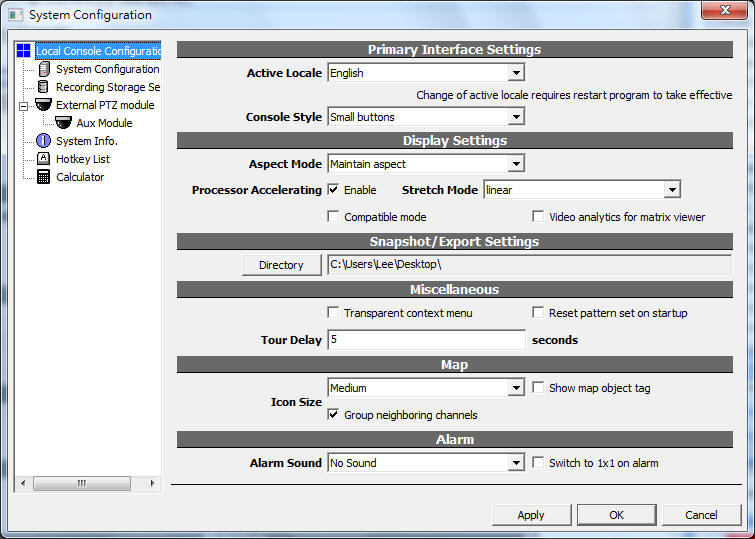

Console setting 控制介面設定

GUI overview 介面概觀



Display Settings 圖形設定

Aspect Mode

The video is not always fit perfectly in the player. It may be too wide or too tall. The player will display the video depends on this setting.

視訊的長寬比並非總是和播放器相同,有時候太寬,有時會太高。播放器將依據這個設定去調整視訊的長寬比。



Maintain aspect

維持長寬比

Stretch video

填滿畫面,影像可能被拉長或壓扁

Crop to maintain aspect

維持長寬比並填滿畫面,影像某些部分將被裁切

Processor Accelerating 處理器加速

Enable Intel MMX, SSE, and SSE2 processor accelerating functions. 3 modes are available. Nearest neighbor has best performance and Cubic offers best graphics quality.

使用Intel CPU的MMX、SSE與SSE2加速功能,圖形加速功能有三種模式,最接近相鄰有較佳的效能,立方則有最好的畫質。

Disabled(Windows GDI)

未使用處理器加速(Windows GDI)

Nearest neighbor 最接近相鄰





Linear 線性

Cubic 立方

Compatible mode 相容模式

Disable all graphics aceclerating to solve display problems. The following are solutions for possible display problems. If the solution doesn't work, use Compatible mode.

停用所有圖形加速,以解決圖形顯示問題。以下是可能的顯示問題及處置方法,若處置方法無效,請使用相容模式。



Video card doesn't support DirectX 9

顯示卡不支援DirectX 9

Replace the video card

更換顯示卡

DirectX is not installed

DirectX沒有正確安裝

Download DirectX 9 from Microsoft

請至微軟的網站下載DirectX 9

The desktop color depth is not 32bit

桌面的色彩品質低於32位元

    Click Properties in the context menu of desktop

    在Windows的桌面按右鍵,選擇內容。

    In Settings tab, change color depth to 32bit.

    選擇設定值頁面,調整色彩品質為32位元。

32bit color depth is not available

桌面的色彩品質不提供32位元的選項

Update video card driver(check the manaul or CD provided by video card vendor)

更新顯示卡驅動程式(請參考顯示卡廠商提供之說明手冊或光碟)

* Use compatible mode only if any display problem is encountered.

※只有在圖形無法正常顯示時才需要啟用此功能

Snapshot/Export Settings 快照/匯出設定

Currently only JPEG is supported. And the quality cannot be configured.

目前僅支援JPEG格式,畫質亦無法調整。

Miscellaneous 雜項

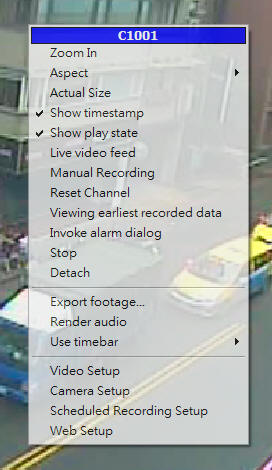

Transparent context menu

Reset pattern set on startup

See also 請參閱

Tour Delay

See also 請參閱

Map 地圖

Show map object tag

Display tags for channel objects in maps.

顯示監看頻道物件的標籤。

Group neighboring channels

With this option on, overlapped channels are represented with a G icon. Click on the icon to zoom in and see grouped channels.

當此功能開啟時,重疊的監看頻道將以G來表示。在G上面單擊滑鼠可以放大檢視群組的監看頻道。

Grouped channels

Not-grouped



Alarm 警報設定

Alarm Sound

Play sound upon alarm.

在警報觸發時撥放音效。

Switch to 1x1 on alarm

When alarm is triggered, switch the channel to 1x1. Even if the channel is not currently viewed, it's forced to display.

在警報發生時,自動將該監看頻道切換成1x1版面。即使該監看頻道不在監看中,亦強制顯示。
