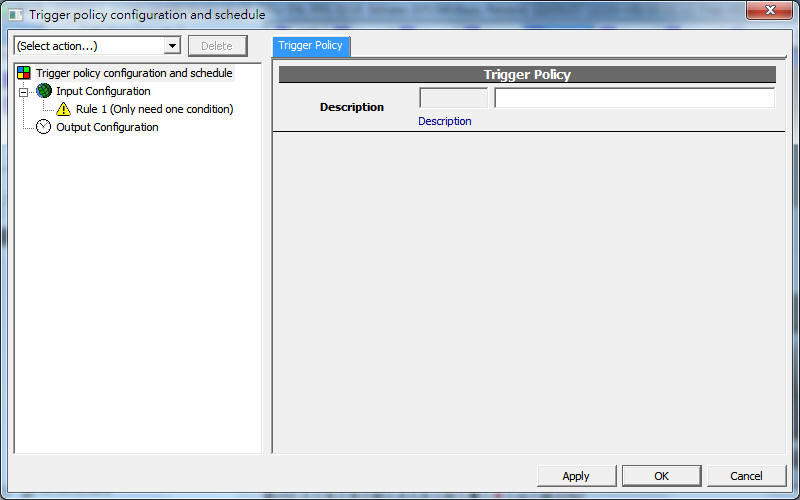

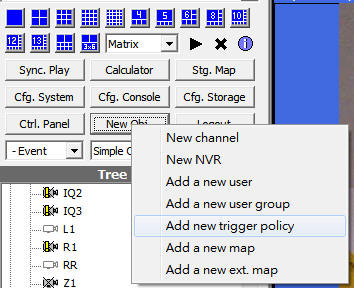

Click New Obj and select "Add trigger policy". If multiple trigger policies exists in a system, they are all in-effective.
在New Obj選單內點選『Add trigger policy』。若系統中存在多個觸發條件設定,則他們全都是同時有效的。
![]()
Channel trigger
Triggered by channel events such as video loss, alarm, IO port... etc.
與監看頻道相關之事件,例如失去視訊、警報、IO點觸發...
System trigger
System events such as system start, system config change... etc.
系統事件,例如系統啟動、系統組態變更...
Schedule trigger
Triggered at specified time.
在設定好之時間點觸發
Channel control
Recording, IO control, PTZ control
錄影、IO控制、PTZ控制
Send Emails
寄發電子郵件
FTP
Upload file to FTP server
上傳檔案制FTP伺服器
on
IO on
IO啟動
off
IO off
IO關閉
vloss
video loss
失去視訊
vreturn
video recovered
恢復視訊
disabled
disabled
頻道停用
enabled
enabled
頻道啟用
record
is/start recording
啟用錄影/錄影中
nrecord
not/stop recording
未錄影/停止錄影
alarm
alarm triggered
警報
alarm_progress
alarm in progress
警報處理中
nalarm
alarm dismissed
警報解除
See also 請參閱
any_vloss
any video loss
任何頻道失去視訊
system_start
system start
系統啟動
error_restart
system start after error shut down
系統異常關閉後重啟
system_config_change
system config changed
系統組態變更
channel_config_change
any channel config changed
任何監看頻道組態變更
Please Note: Not all editions of software license has this feature enabled. Check with feature matrix for more details.
請注意:並非所有版本皆具有此功能,詳情請參閱相關說明文件。

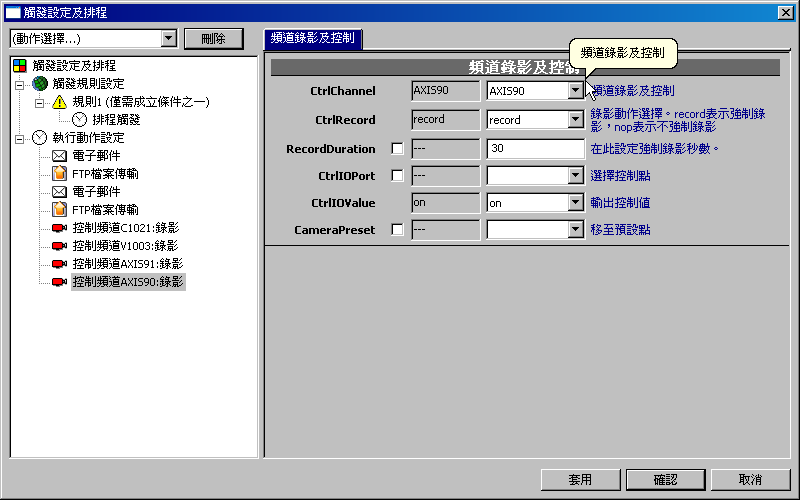

CtrlChannel
The channel to control
欲控制之監看頻道
CtrlRecord
Recording selection. Use 'record' to force record. Use 'nop' if no forcing recording is needed.
錄影動作選擇。record表示強制錄影,nop表示不強制錄影。
RecordDuration
Number of seconds of forced recording.
在此設定強制錄影秒數。
CtrlIOPort
IO port selection
選擇控制埠
CtrlIOValue
Output control value
輸出控制值
CameraPreset
Move to preset
移至預設點
Required parameters 必要參數

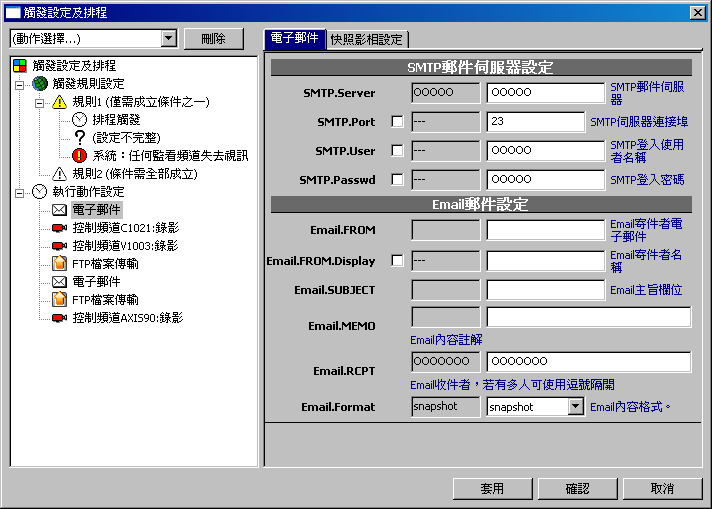

SMTP.Server
IP or domain name of SMTP server
SMTP伺服器之IP位址或網域名稱
SMTP.Port
Port, usually 25
連接埠,一般為25
SMTP.User
User name to log in
登入名稱
SMTP.Passwd
Password to log in
登入密碼
Email.RCPT
Recipients. At least one is required. Seperate multiple recipients with ';'.
收件者,至少需有一筆。欲輸入多筆,以";"分隔。
Snapshot 快照
Please Note: Not all editions of software license has this feature enabled. Check with feature matrix for more details.
請注意:並非所有版本皆具有此功能,詳情請參閱相關說明文件。
If "Email.Format" is set to "snapshot" and one or more channel control exist in this policy, a snapshot of the channels is attached to the email. Multiple channels will be composed as a single snapshot automatically. The dimension and quality of the snapshot can be configured in Snapshot Settings tab.
若"Email.Format"設定為"snapshot"而且此觸發條件中至少包含一個頻道控制,電子郵件中將會附帶一張監看頻道的快照。若有多個監看頻道,將自動合併成一張快照。快照的大小和畫質可以在快照影像設定頁面中設定。
Please Note: Not all editions of software license has this feature enabled. Check with feature matrix for more details.
請注意:並非所有版本皆具有此功能,詳情請參閱相關說明文件。
Required parameters
必要參數說明如下:

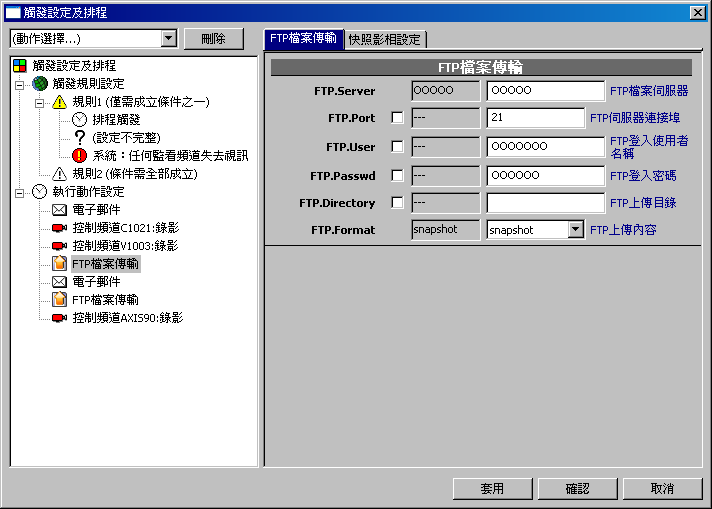

FTP.Server
IP or domain name of FTP server
FTP伺服器之IP位址或網域名稱
FTP.Port
Port, usually 21
連接埠,一般為21
FTP.User
User name to log in
登入名稱
FTP.Passwd
Password to log in
登入密碼
Snapshot 快照
Snapshot is composed as it is in email.
快照設定同電子郵件。
Multiple trigger conditions can exist in a single trigger rule. Action is done only when all or some of the conditions are met, depends on AND or OR logic being applied. Logic OR is always applied to the first rule. Logic AND is applied to any added new rule.
觸發規則可包含多個觸發條件,依據AND或OR邏輯之不同,只有在所有條件或部分條件符合時才執行動作。第一個觸發規則永遠使用OR邏輯,之後新增的規則均使用AND邏輯。
