Adding a channel 新增監看頻道

Console operation基本控制操作

To start configuration, you need to get basic understanding about how the console is operated after login. You may read the first page of "Operation" section before you proceed with this page.

在開始設定前,你可能需要瞭解一些基本的控制端操作,你可以跳到本文件『操作』先行閱讀前面幾頁來瞭解一些介面設計上的概念。

Adding a channel新增一監看頻道

Right-click on the empty area of the user tree panel, and then click "New Channel…"

在使用者樹狀圖中空白區域按右鍵,選擇"New Channel…"

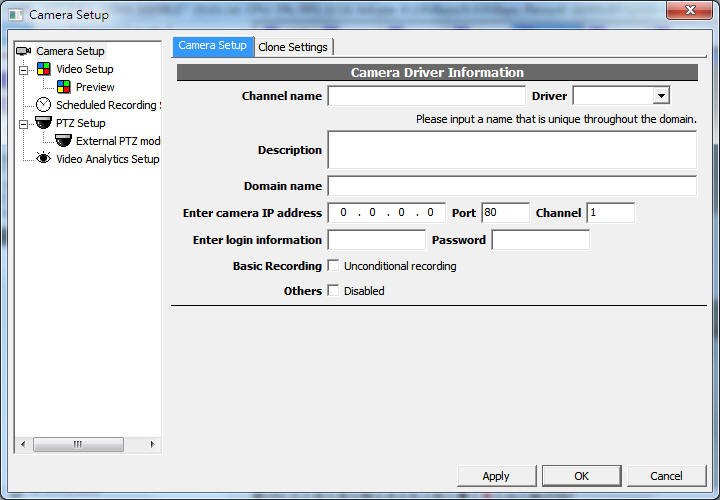

Following dialog box will appear.

如下對話盒將會出現:





This is an integrated dialog with everything about channel configuration; camera setup, video setup, schedule recording setup, PTZ setup. Navigate through the tree nodes to change the items to be configured.

此視窗為監看頻道之整合視窗,同時包含攝影機設定、影像設定、錄影排程、PTZ設定,點選左邊之樹狀圖以改變欲設定之項目。



Enter the channel name, IP address, etc information.

輸入頻道名稱、IP位址等所需連結基本資訊。



Note: "Channel name" is an important signature of a channel and therefore cannot be changed after it's created. Nor can it be duplicated with other channels. You should choose the channel name carefully, as it associates all configuration and storage information with that channel. If you expect a more user-friendly description, you can use the "Description" field for the purpose.

注意:『名稱』一欄在監看頻道具有重要的意義,這個名稱連結所有此頻道的資料,包含設定以及錄影的資料。因此此名稱一旦設定便無法更改,請小心選用名稱。若你需要的是較為容易閱讀的名稱,你可以在『說明』上面打上容易瞭解的文字,此說明欄位是可以隨時修改的。

Parameters 參數說明

IP Address

IP address of the network camera

網路攝影機的IP位址

Port

The TCP/IP port number of the network camera

網路攝影機的TCP連接埠。

Channel

The channel number of the network camera. This value may apply if a single video server has multiple channels.

頻道編號。此值在具有多頻道的video server時特別有用。

Uncondition Recording

Check this box, if you wish the NVR to start recording immediately. To configure other types of recording, you need to perform additional operations after channel creation.

若勾選此方塊,則NVR會立刻開始進行無條件的錄影。若你想設定其他種類的條件錄影,你需要在其他的功能上進行額外設定。

Disable Channel

Temporarily disable the channel. NVR will not access any channel with this box checked. You can always enable it at later time.

暫時停用此頻道。NVR不會對於停用的頻道進行任何形式的連線。你可以在稍後的任何時間將其啟用。
