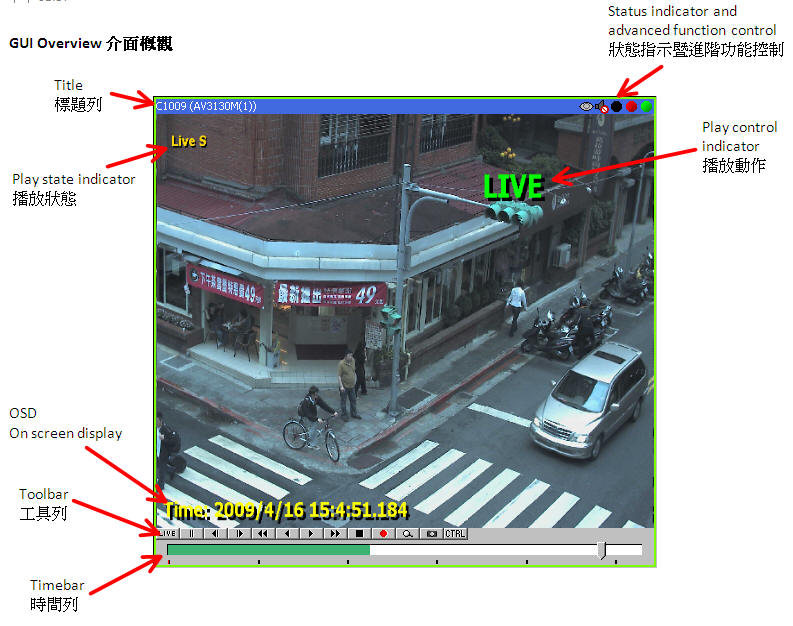

Displays the name and description of attached channel/map. The background color indicates the status.
Channel live view
監看頻道即時影像
Map is loaded
地圖已就緒
Channel playback/Map is loading
監看頻道回放/地圖讀取中
Nothing is attached
沒有使用
Map is changed and not saved
地圖變更尚未存檔
Blinking: Active alarm
Static: Alarm in progress
閃爍:警報
靜止:警報處理中
Live
Live view
即時影像
||<
Pause, backward play
暫停,倒放時
>||
Pause, forward play
暫停,正放時
<
倒放
>
正放
<<
Fast backward
快轉,逆放
>>
Fast forward
快轉,正放
E
End of recorded data
沒有更新的錄影資料
AZ
Actual size, zoomed
實際影像尺寸,局部
A
Actual size
實際影像尺寸
Z
Zoomed
放大
S
Stretched
影像填滿播放器
C
Cropped
影像裁切
Display the video time, resolution, and frame rate. Depends on OSD setting selected.
依據設定不同,顯示視訊的時間、解析度、禎率。
In local console setting dialog, you can configure the size and style of the toolbar buttons.
在控制介面設定中可以設定工具列按鈕大小。
Small buttons
使用小按鈕Large buttons
使用大按鈕
Live video Pause Step Bkwd Step Fwd Fast Bkwd Play Bkwd Play Fwd Fast Fwd Stop Record Zoom Snapshot Control panel 即時影像 暫停 單格逆放 單格正放 快速逆放 正常逆放 正常播放 快速播放 停止 手動錄影 放大縮小 快照 控制面板 See also 請參閱
See also 請參閱
Intelligent video
智慧分析
Render audio
播放聲音
Accessing disk
硬碟讀取
Recording
錄影中
Video streaming
視訊正常
See also 請參閱
