IO Port 輸出/輸入控制埠

GUI Overview 介面概觀



To access IO ports, expand a channel node in User Tree. Gray nodes are inactive ports. Red ones are active input. Green ones are active output. If a node is unexpandable, it doesn't support IO ports or it's not configured properly.

欲使用輸出/輸入控制埠，在使用者樹狀圖中展開監看頻道。灰色的節點表示關閉的控制埠，紅色的是開啟的輸入埠，綠色的是開啟的輸出埠。如果監看頻道的節點無法展開，則該監看頻道不支援控制埠，或者沒有正確地設定。



See also 請參閱

• Console overview主控台概觀

Control 控制



To control IO ports, right click on it to access the mneu. Input ports cannot be controlled in the NVR system. They are connected to physical input devices such as switches, sensors... etc.

在控制埠上點擊右鍵叫出選單。輸入埠在NVR系統之中無法控制，是因為他必須由所連接之裝置或電路加以控制，例如開關、感應器等等。



Pulse is a sequence of repeated on/off send to the port. Literally the controlled device will blink for few seconds. The final state is off.

脈衝為一段連續而重複的開/關交替，簡言之，受控制的裝置將會閃爍數秒鐘。脈衝結束時控制埠呈關閉裝態。

IO Ports in Maps 地圖中的輸出/輸入控制埠

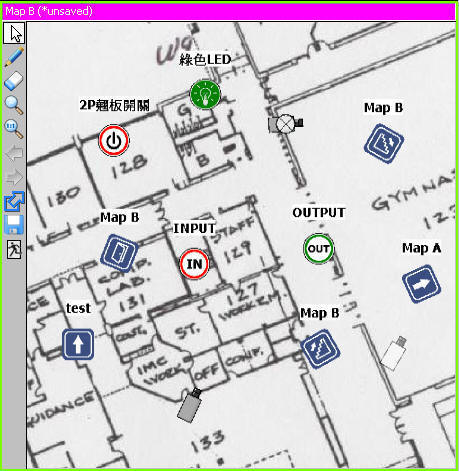

To add an IO port in map, drag it in map and release.

使用滑鼠拖曳功能將控制埠新增至地圖中。



Use context menu to control the port.

使用右鍵選單來控制控制埠。

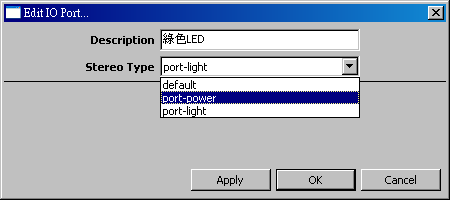

The description and icon can be edited in the property dialog. The change is only applied to the selected map item, not every item/node representing that port.

在內容視窗中可改變控制埠的描述及圖示。編輯的結果只適用該地圖項目，不會影響其他代表此控制埠的地圖項目或樹狀圖項目。
